Wireless Dimmer Controller

Switch on. Go wireless! Bromic Smart-Heat Controllers make the use of your outdoor heaters simple. Our controllers are designed to be easy to install, compact and provide ample range on our wireless signal, giving you total control of your heater.

Wireless Dimmer Controller

£657.00 Includes VAT

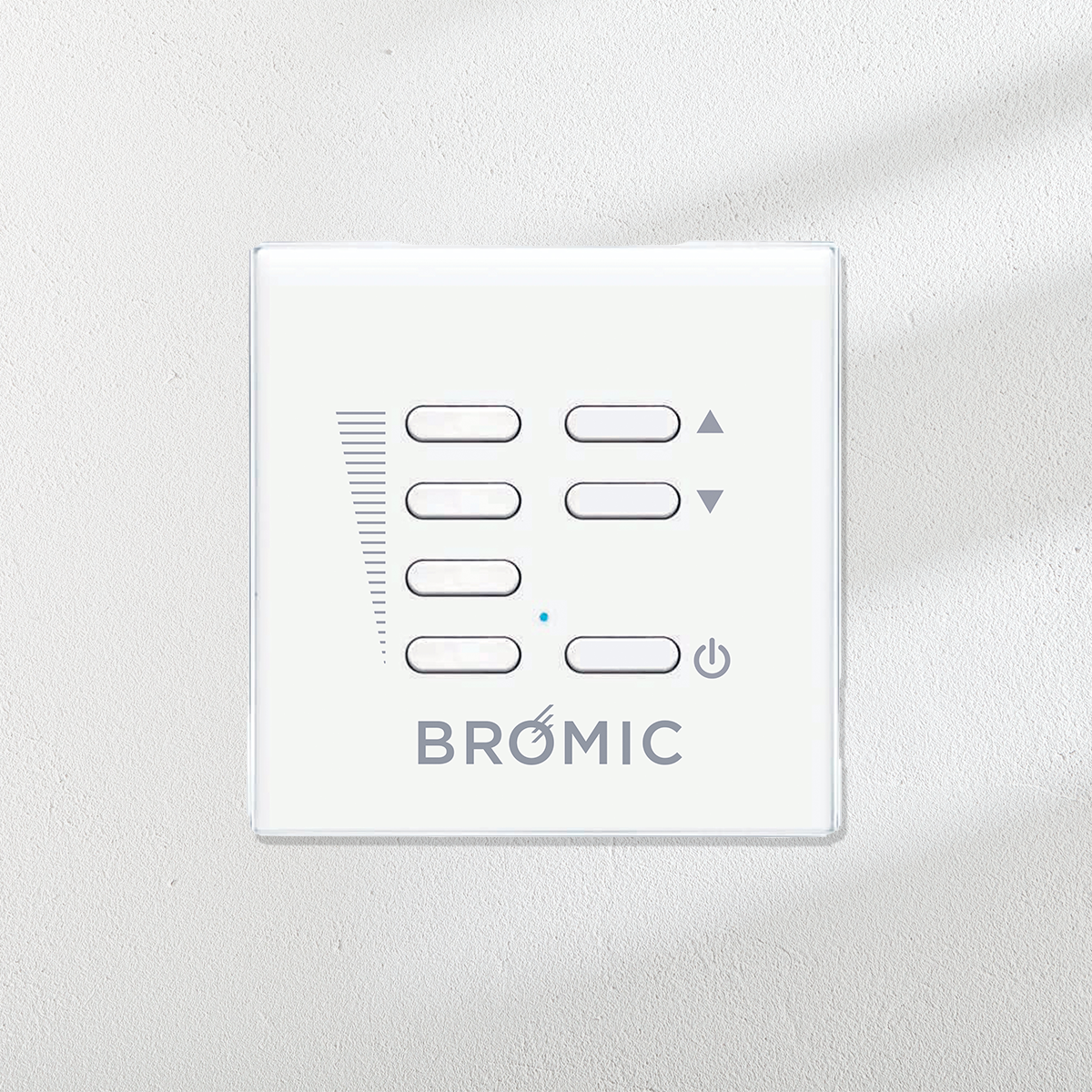

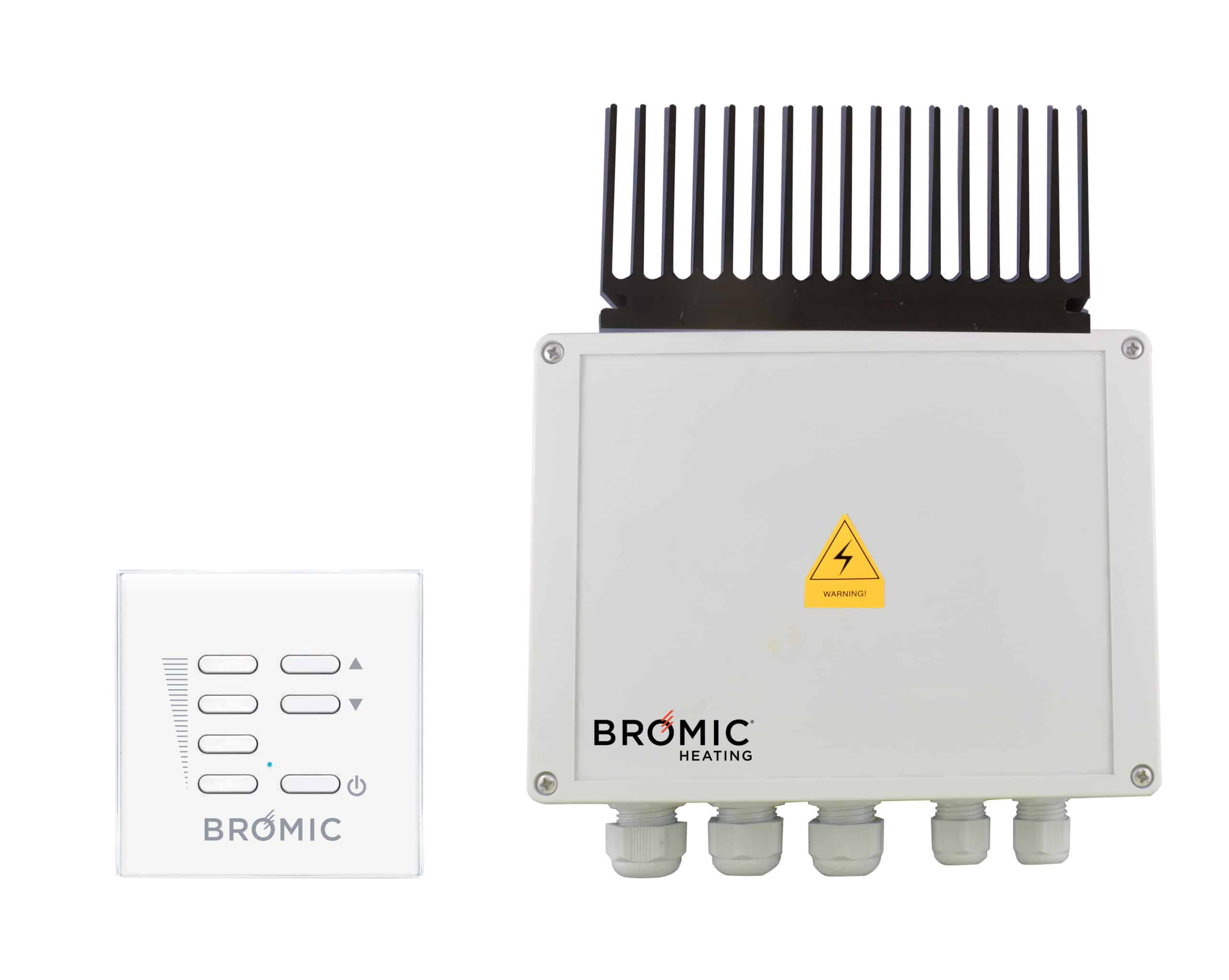

Move beyond the base-model with our Bromic Heating Wireless Dimmer Controller. With our Dimmer Control and wireless 7-Channel remote, you’ll be able to precisely adjust the output of your electric heaters in 1% increments, or quickly jump by 25% increments for perfect comfort and complete flexibility from up to 30m away.

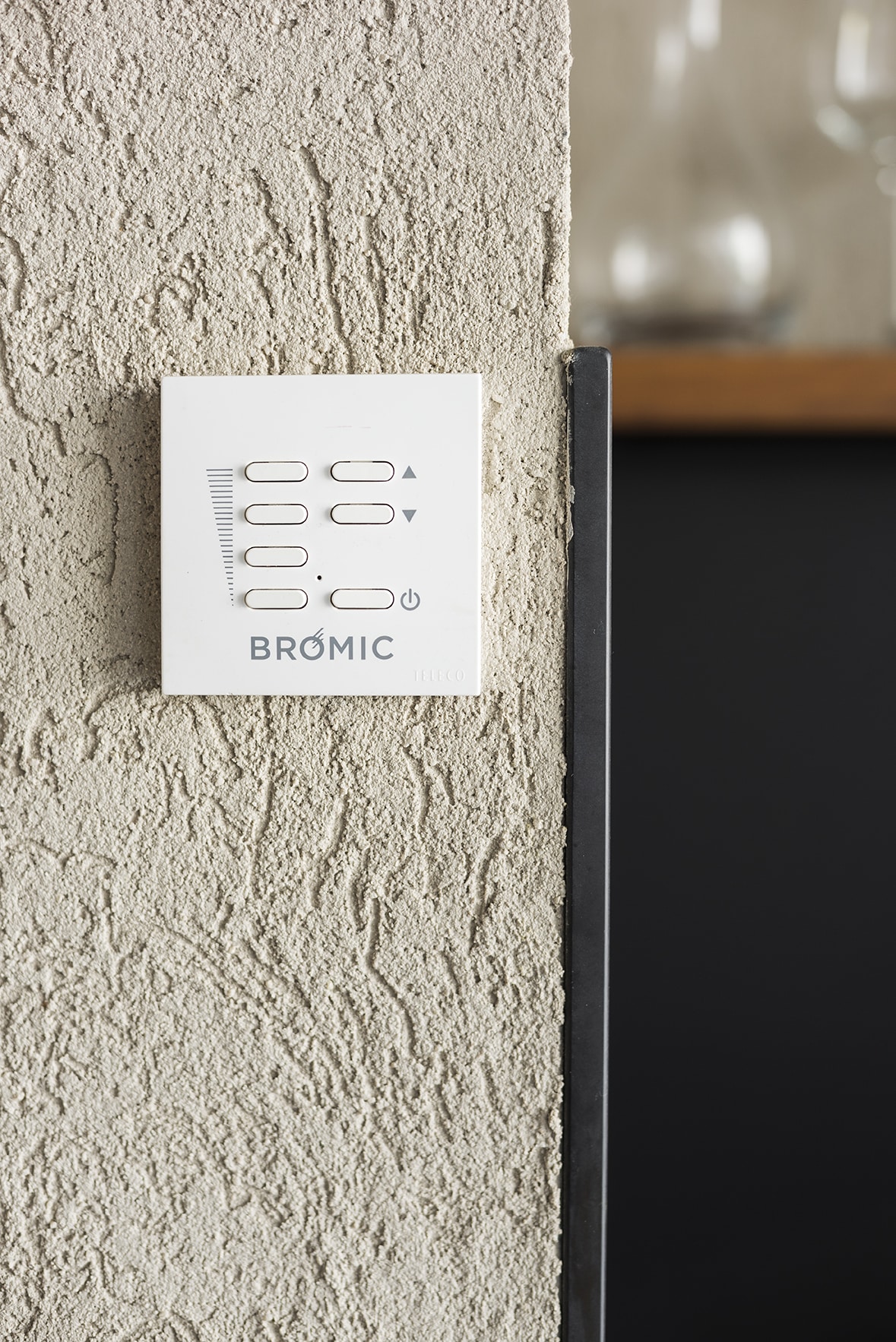

The remote can be kept separate or easily mounted with the included double-sided adhesive or screws. Each dimmer controls one 6800W heater at 240VAC or two 3400W heaters at 240VAC.





SKU: BH3130011-1 Category:

Product Resources

Specifications

Please reference the specification guide below to help you select the correct solution for your needs.

PART NUMBER BH3130020-1
POWER SUPPLY 230/240V 50/60Hz (29A.max)
MAX OUTPUT POWER CHANNEL 6800W @ 240VAC (28.5A)
6800W @ 277VAC (25A)
6000W @ 208VAC (29A)
FUSE PROTECTION 32A (FWC high speed)</td
RECEPTION FREQUENCY 868 MHz
OPERATING TEMPERATURE RANGE -20° to +30°C
DIMENSIONS 270 x 200 x 75 mm
WEIGHT 2kgs
PROTECTION CLASS IP54
APPROVAL CERTIFICATION CE
Downloads
