Specifications
Please reference the specification guide below to help you select the correct solution for your needs.

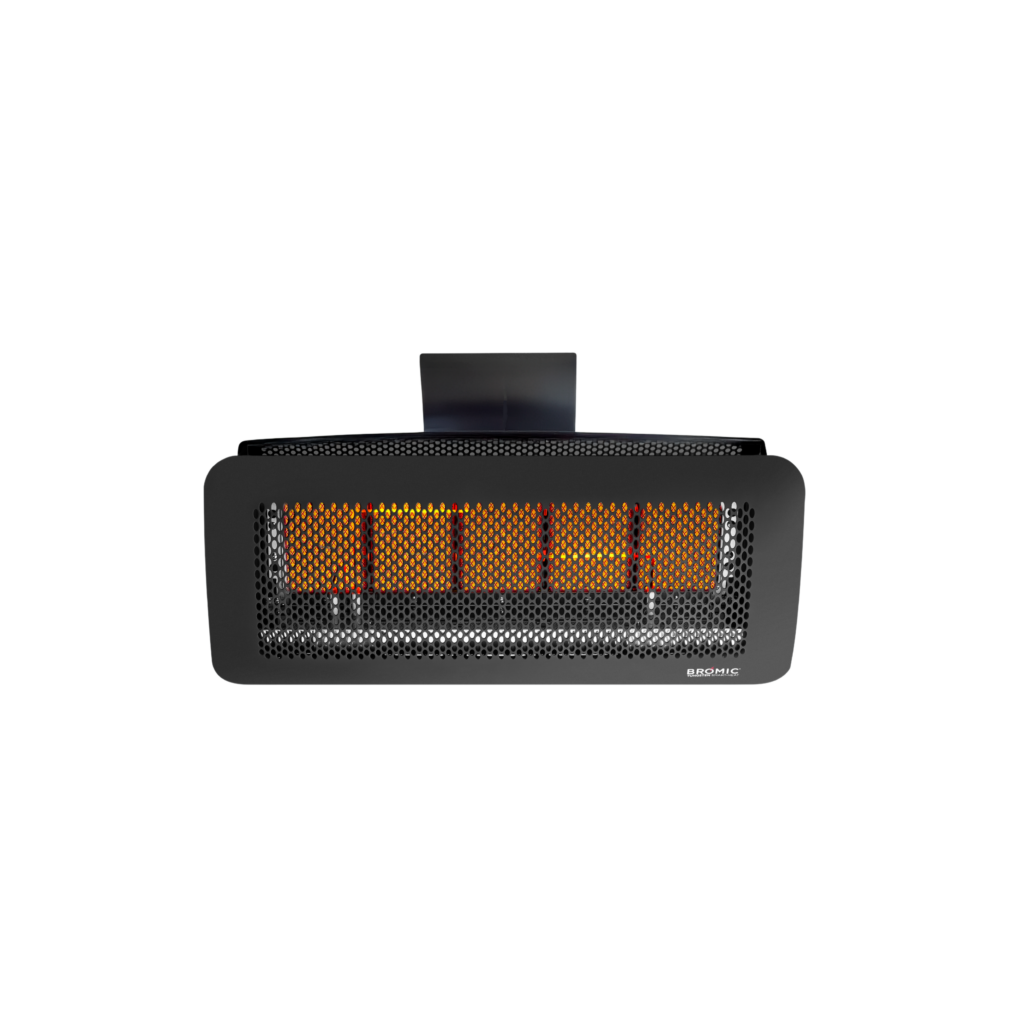

MODEL NUMBER |

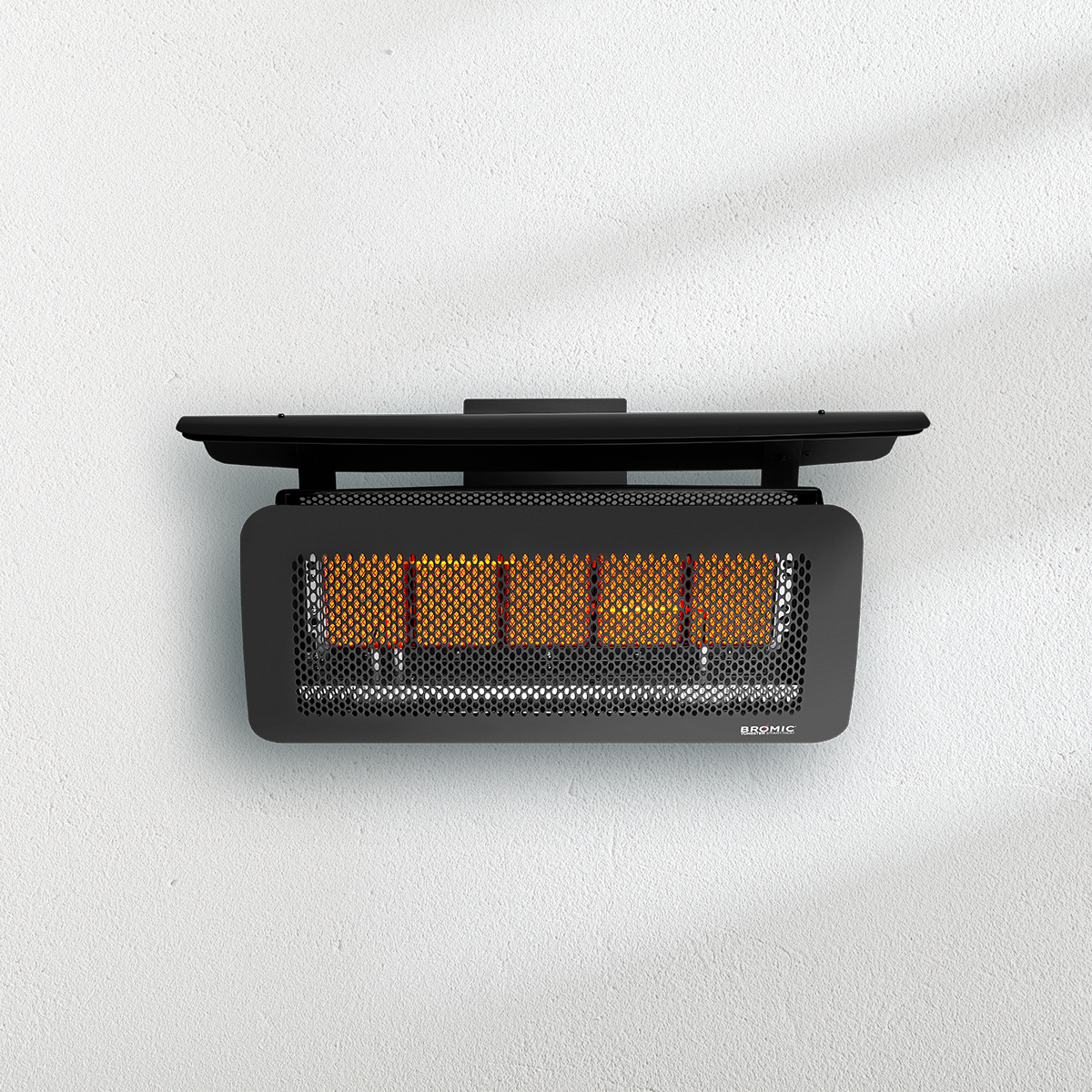

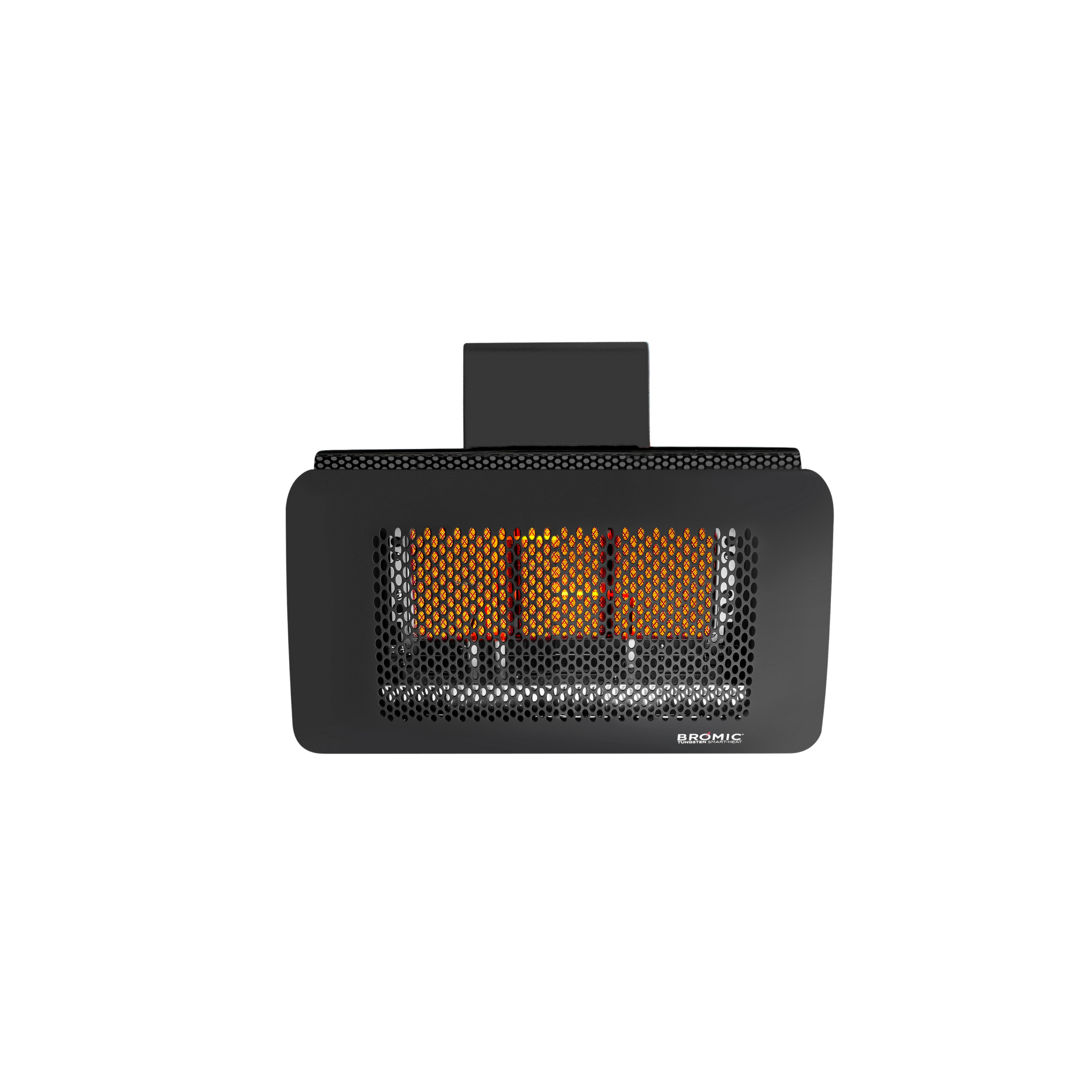

300 SERIES |

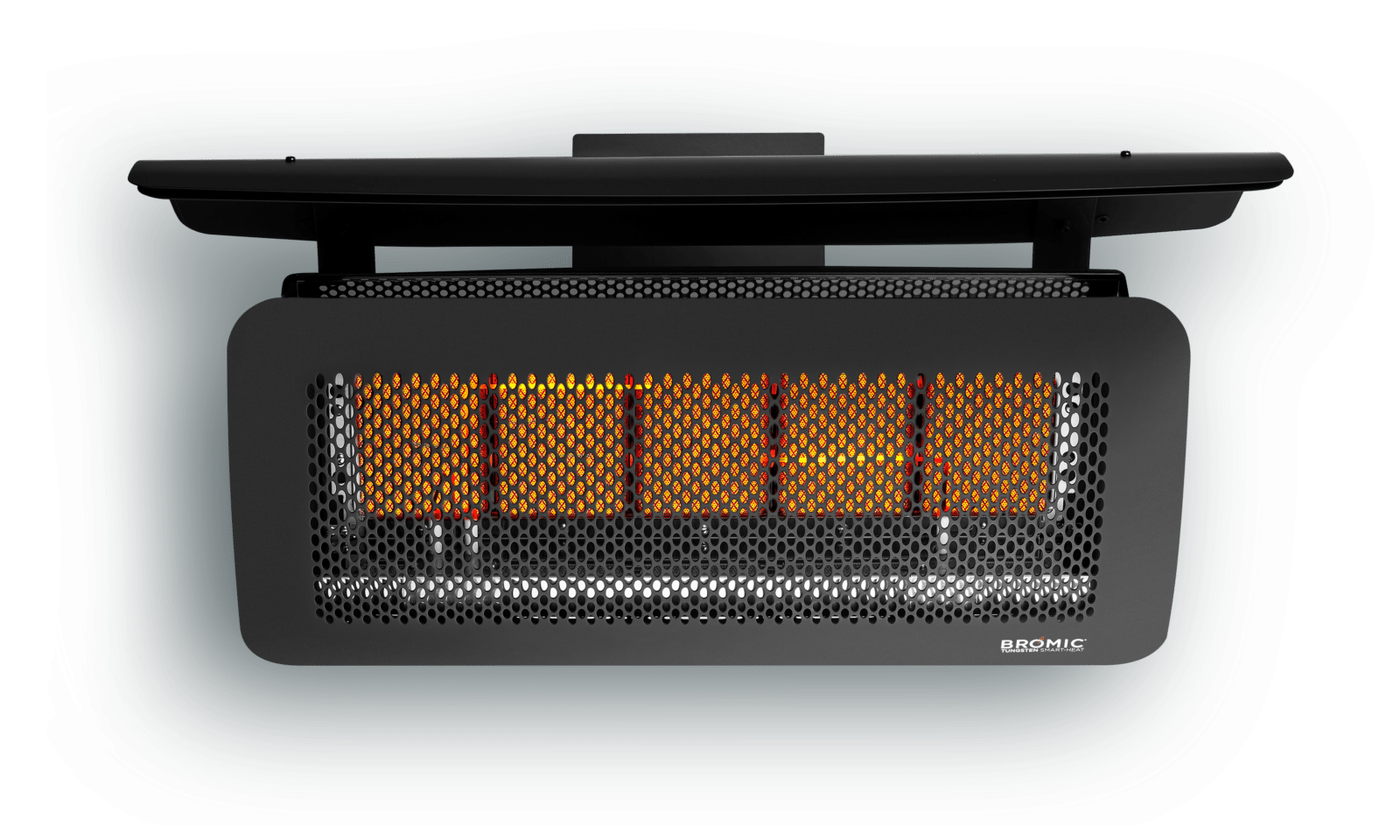

500 SERIES |
FUEL TYPE |
LPG | NG |
LPG | NG |
OUTPUT |
25 MJ |
42 MJ |
COLOUR |
MATTE BLACK |
MATTE BLACK |
WEIGHT |
15kgs |
20kgs |
HEAT AREA |
15m2 |
20m2 |
ELECTRICAL CONNECTION |
110V/2A |
110V/2A |
MINIMUM FLOOR CLEARANCE |
2500mm |
2500mm |
APPROVAL CERTIFICATION |
UKCA-Intertek UK-GZH-0359-0000091 |
Downloads
Installation
Installation must be carried out by a licensed and authorised technician in accordance with local building codes. Please refer to our installation manual for further details.
Downloads
BIM & CAD Files
To download BIM & CAD files, fill out the form below:
FAQs
Is the output of the heater adjustable?
Our gas heaters are on/off only. If you’re looking for a dimmable option, the we would recommend our Bromic electric heaters, which allow for more precise control over the heat output.
How do I control the heater?
We recommend adding the Bromic On/Off controller and wireless remote, so the heater can be turned off and on from the comfort of your home. Alternatively, the heater can also be controlled via a standard wall switch.
Can this heater be connected to a smart home or building automation system?
Yes, the heater can be connected to smart home and building technology, provided the system has been fitted with a RS232 port. For this, you require our On/Off Controller and our Bromic Smart-Heat Link RS232 plugin.

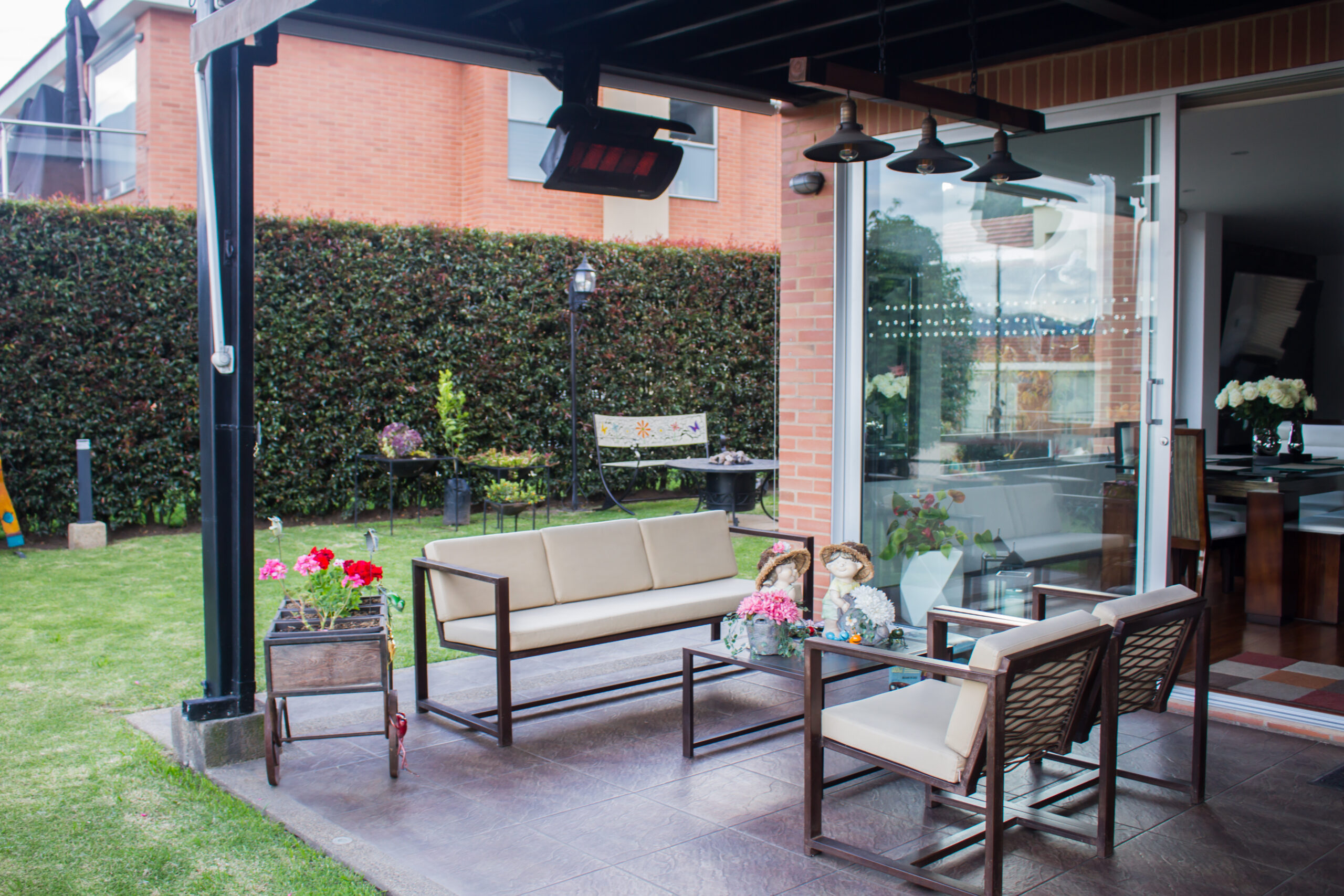

Could this be installed indoors, assuming all clearances are met?
No. All Bromic Gas Heaters are intended for outdoor use. In a four sided area of installation, at least 25% of the wall area must be open, and 30% of the remaining walls must be open.
