Specifications
Please reference the specification guide below to help you select the correct solution for your needs.
MODEL NUMBER |

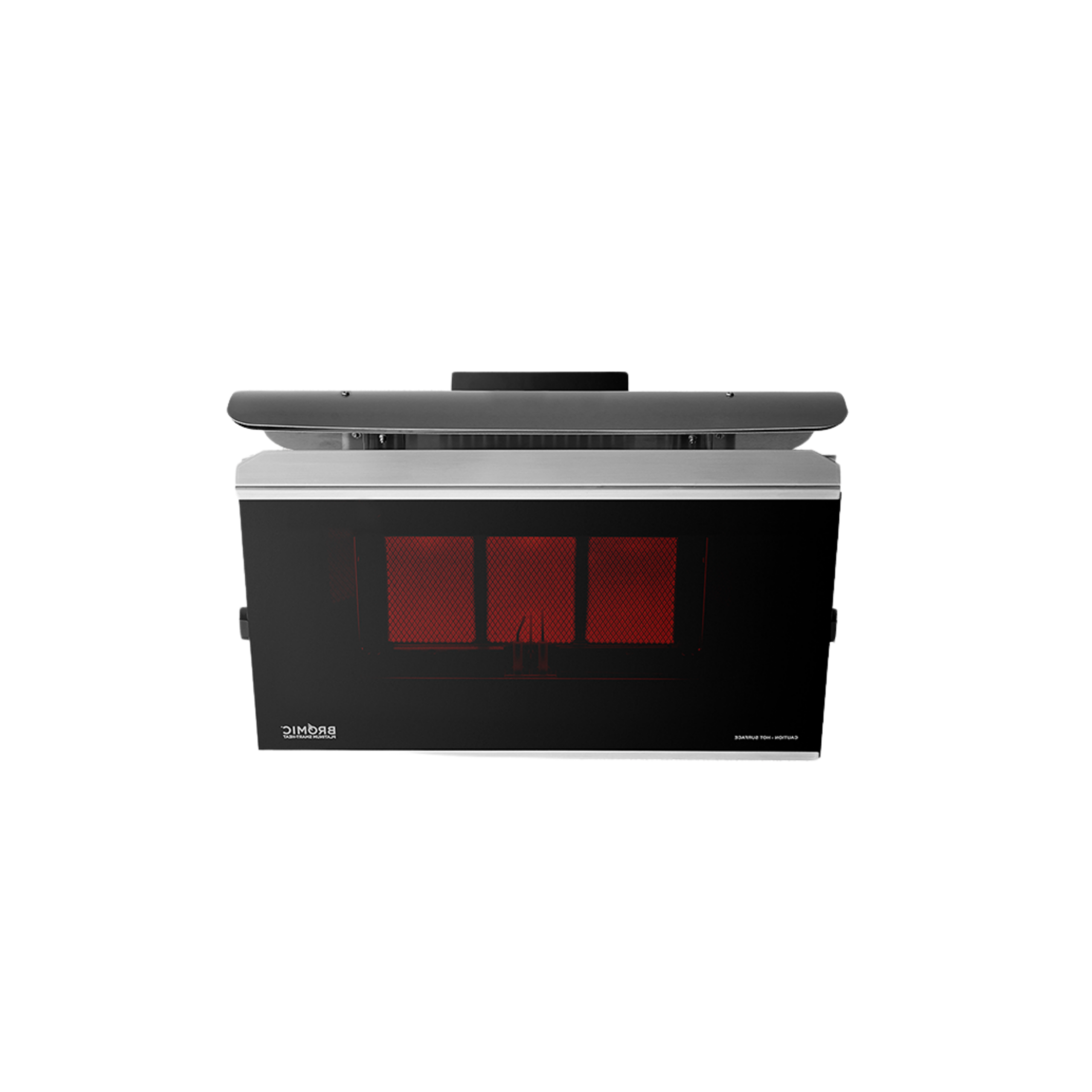

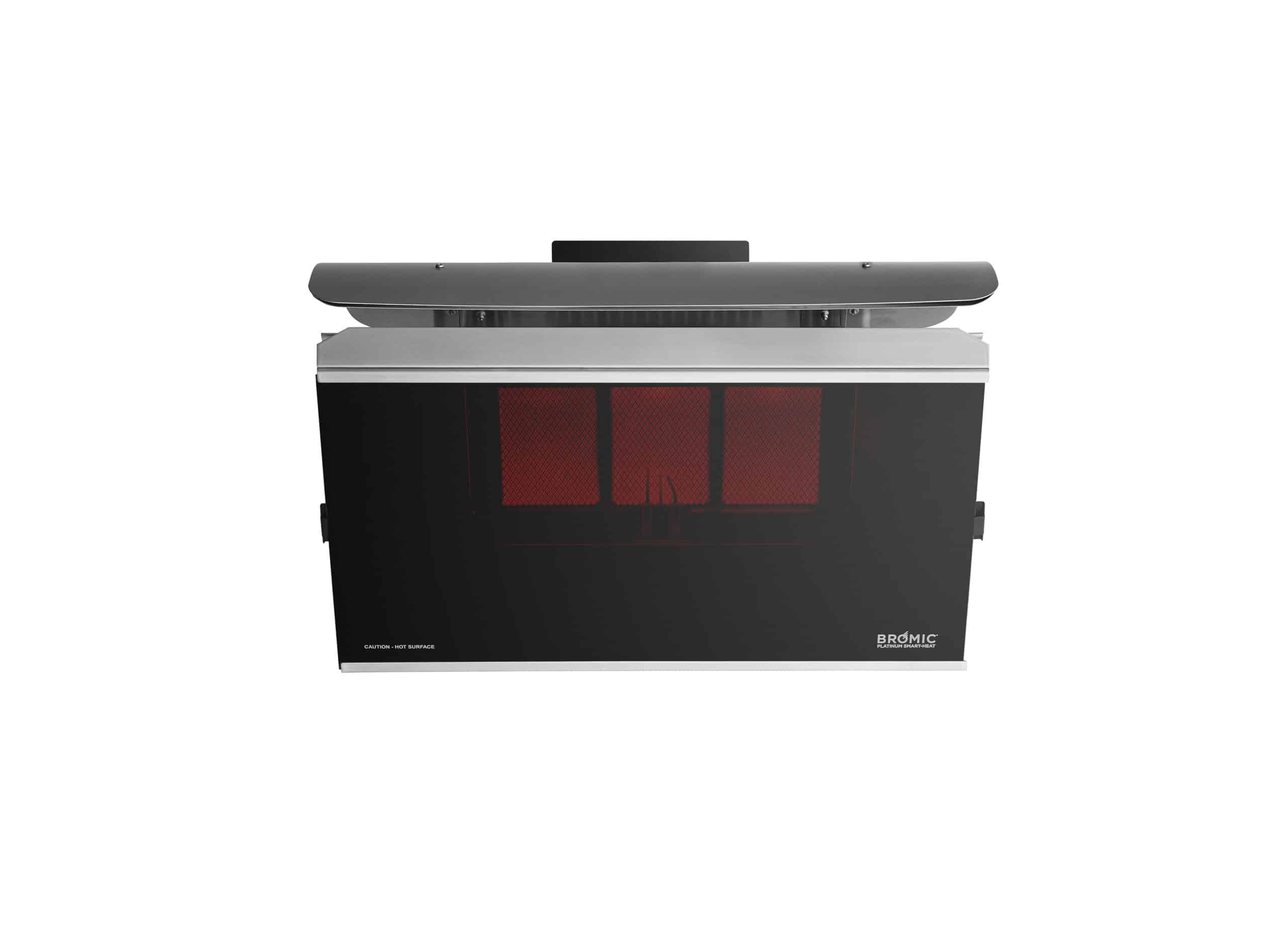

300 SERIES |

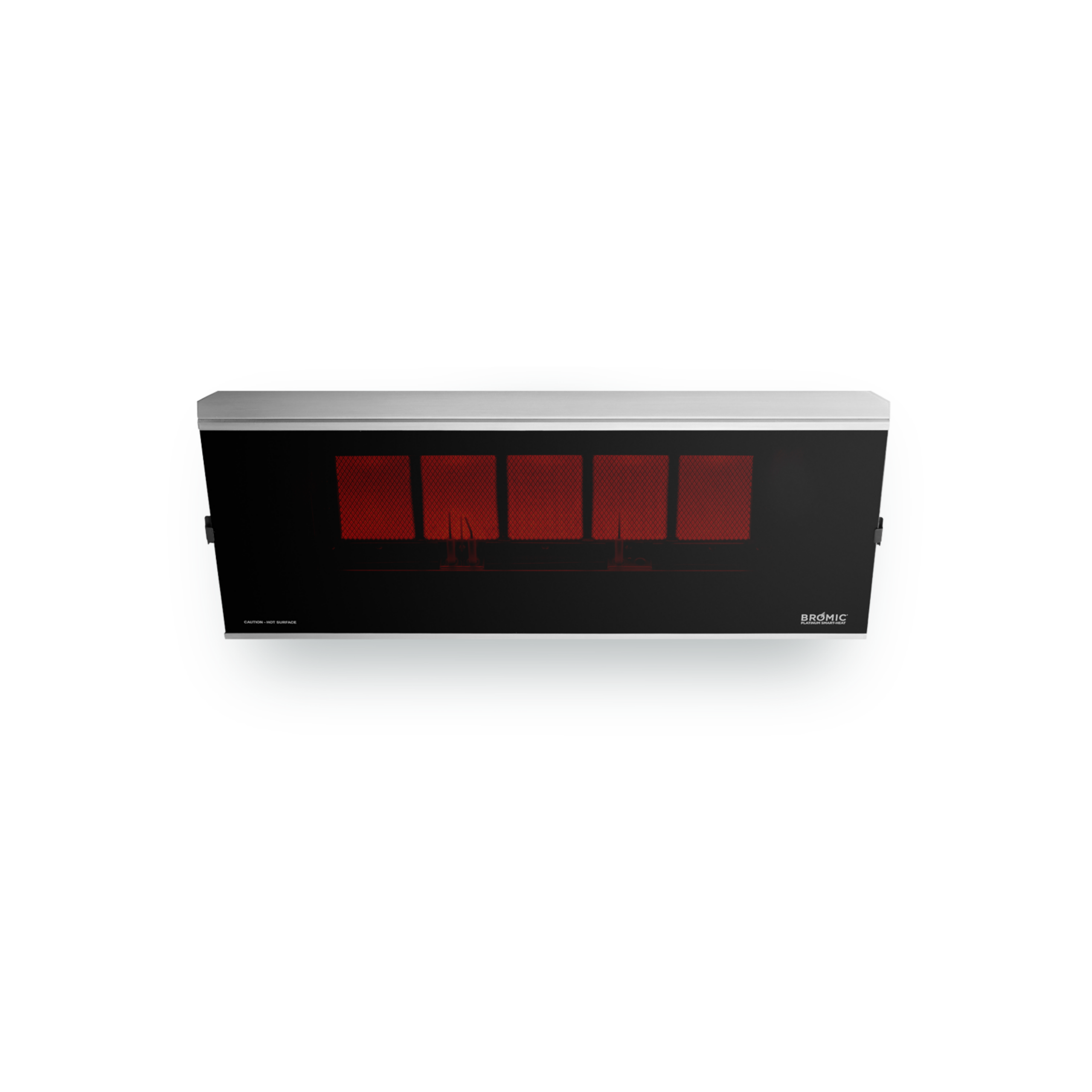

500 SERIES |
FUEL TYPE |
LPG | NG | BUTANE |
LPG | NG | BUTANE |
COLOUR |
BLACK | STAINLESS |
BLACK | STAINLESS |
WEIGHT |
15kgs |
20kgs |
HEAT AREA |
15m2 |
20m2 |
RATED CURRENT |
110V/2A |
110V/2A |
MINIMUM FLOOR CLEARANCE |
2500mm |
2500mm |
OUTPUT |
25 MJ |
42 MJ |
APPROVAL CERTIFICATION |
UKCA-Intertek UK-GZH-0359-0000091 |
Downloads
Installation
Installation must be carried out by a licensed and authorised technician in accordance with local building codes. Please refer to our clearance requirements and consult the installation manual for further details.
Downloads
BIM & CAD Files
To download BIM & CAD files, fill out the form below:
FAQs
What is supplied with the mounted gas heaters?

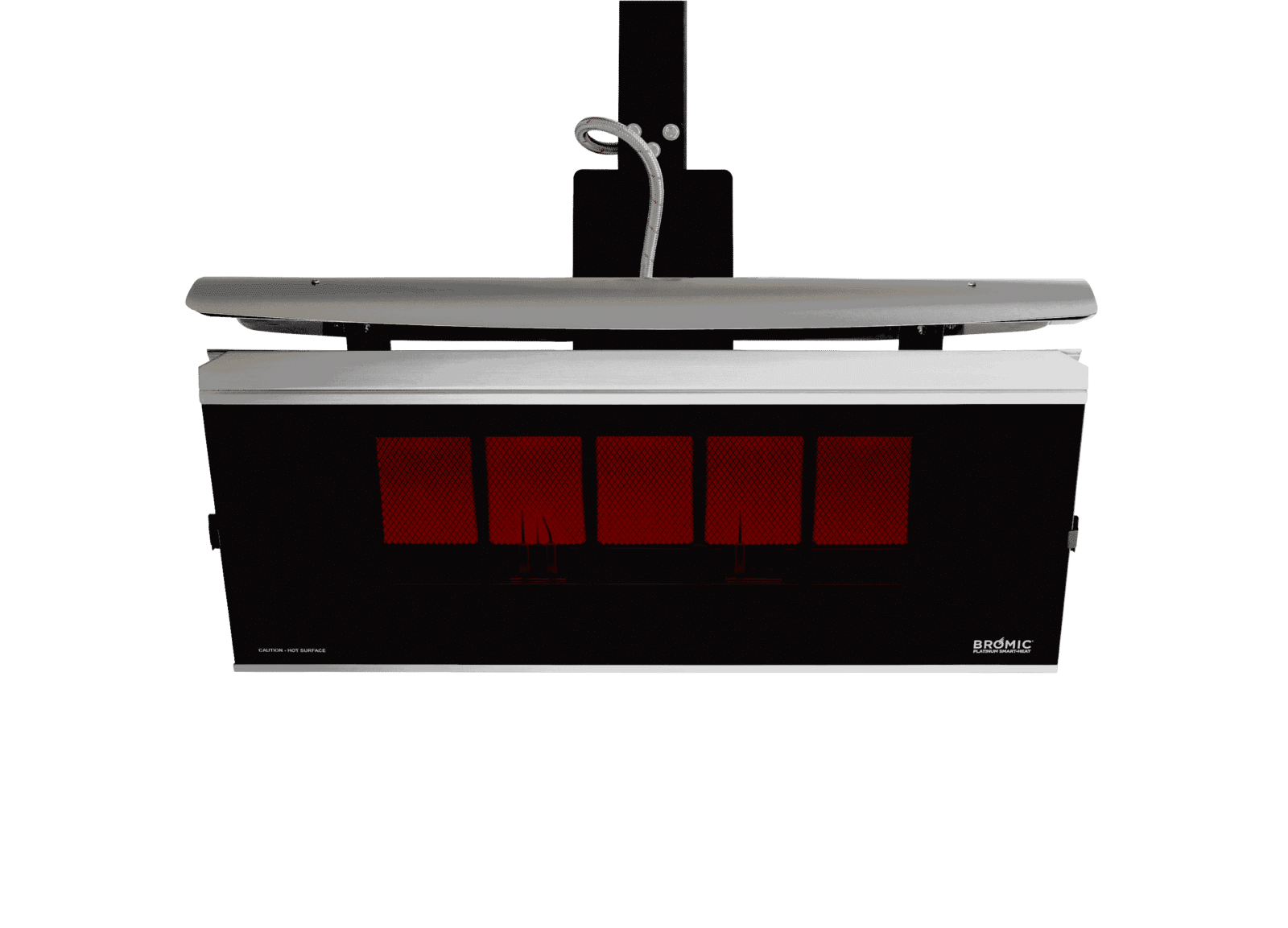

All our Smart-Heat gas heaters come with wall mount brackets. Ceiling poles, deflectors and controllers can be purchased as additional accessories.
Can I install the heater myself?
No, our Bromic Smart-Heat gas heaters need to be installed by a licensed technician.
Do the gas heaters require an electrical supply?
Yes, these heaters have an electric ignition which requires an electrical supply.
How can I control the heater?
We recommend adding the Bromic On/Off controller and wireless remote, so the heater can be turned off and on from the comfort of your home. Alternatively, the heater can also be controlled via a standard wall switch.
Can I adjust the heat output on the gas heaters?
Our gas heaters are on/off only. If you’re looking for a dimmable option, the we would recommend our Bromic electric heaters, which allow for more precise control over the heat output.

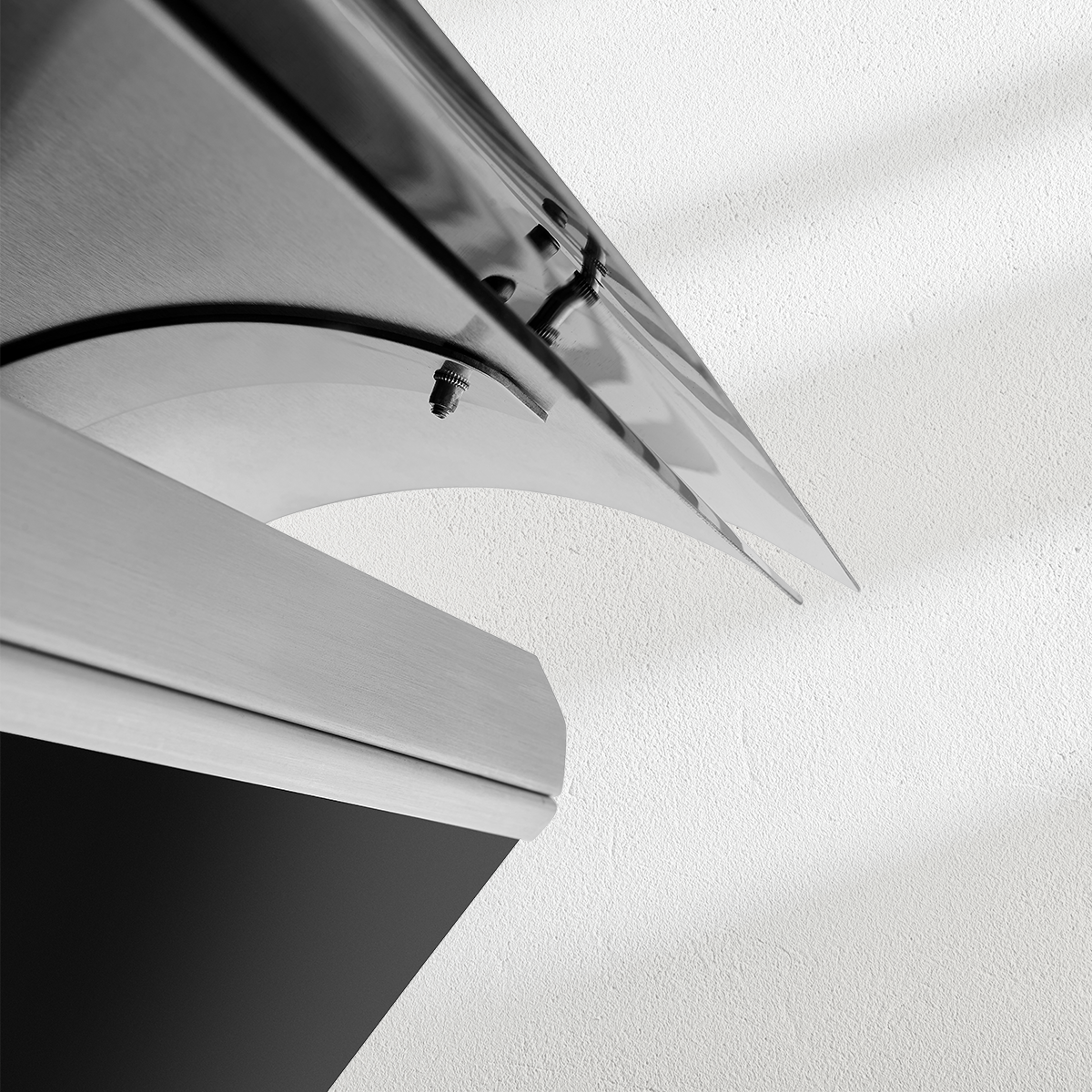

Is the heater supplied with a heat deflector
No. Heat deflectors are available as an additional accessory.
Does the heater come with a cover?
No, we do not offer cover for our fixed installed heaters as these present a fire-hazard as there is a risk the heater might get accidentally switched on with the cover on.
Can this heater be connected to a smart home or building automation system?
Yes, the heater can be connected to smart home and building technology, provided the system has been fitted with a RS232 port. For this, you require our On/Off Controller and our Bromic Smart-Heat Link RS232 plugin.
