Bromic’s best-in-class controls have arrived with our Affinity Smart-Heat™ Collection. The new On/Off series streamlines installation and elevates custom comfort with management through our Bromic Heating App.

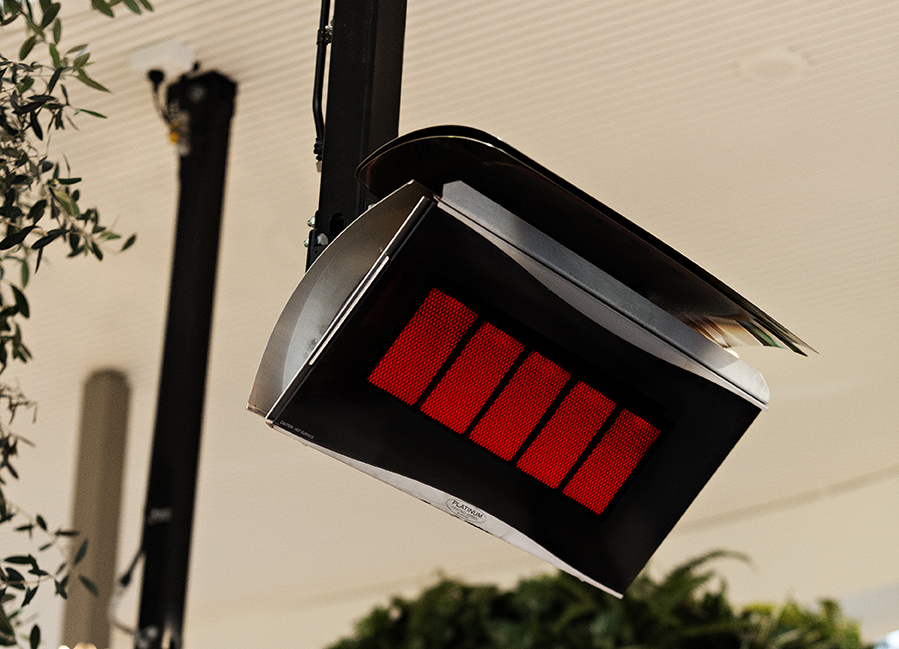

Gas or Electric Compatible
Suitable for our Platinum and Tungsten Collection gas or electric heaters, the On/Off series offers straightforward management now with more control settings than ever to enjoy the comforts of your Bromic heaters.
More Channels Than Ever
The new Affinity On/Off Series is compatible up to 277 volt and comes in available channel options of 1, 2 or 5 – with each channel input controlling up to 6000W of power or 10 gas heaters.
WiFi & Bluetooth Enabled
All controllers within the Affinity Collection are Wi-Fi & Bluetooth enabled to receive commands from our Bromic Heating App from anywhere within your Wi-Fi network or 30ft via Bluetooth.

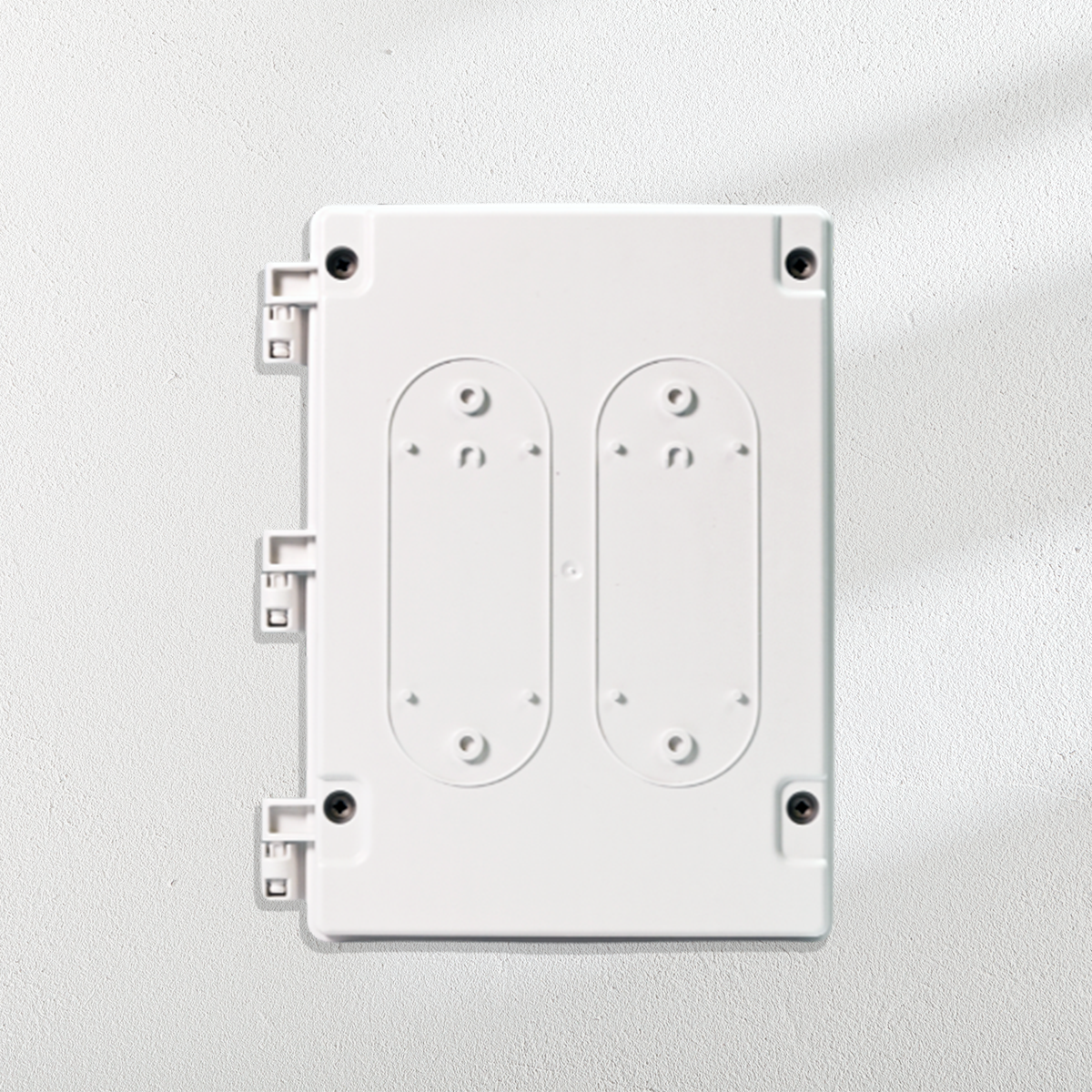

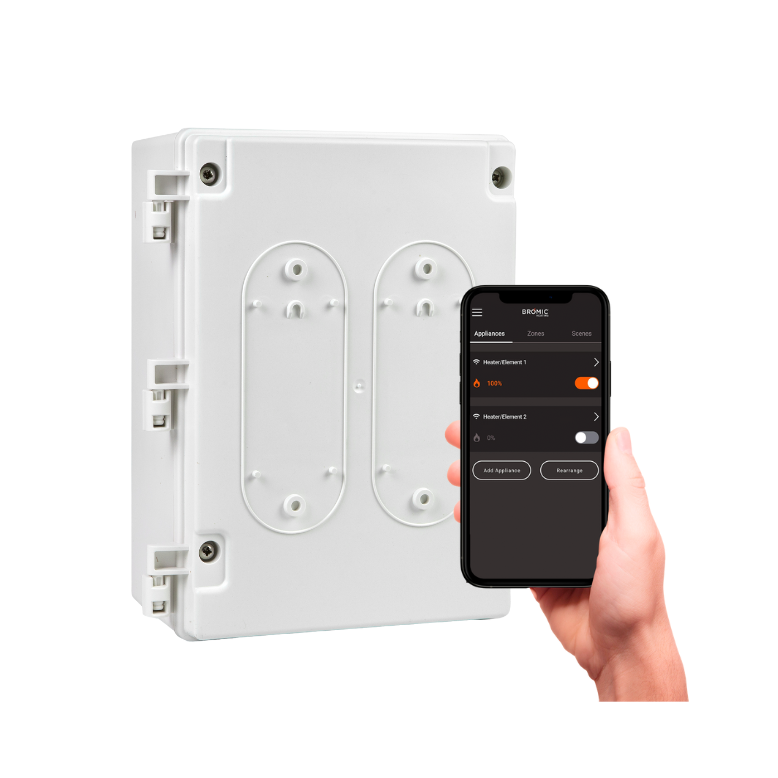

Affinity Smart-Heat™ On/Off Controllers
£309.00 – £1,750.00 Includes VAT
The On/Off series allows for connected Platinum or Tungsten Collection gas or electric Bromic heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. This series includes options for 1, 2, and 5 channel inputs. Each channel input can control up to 6000W of power or 10 gas heaters. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

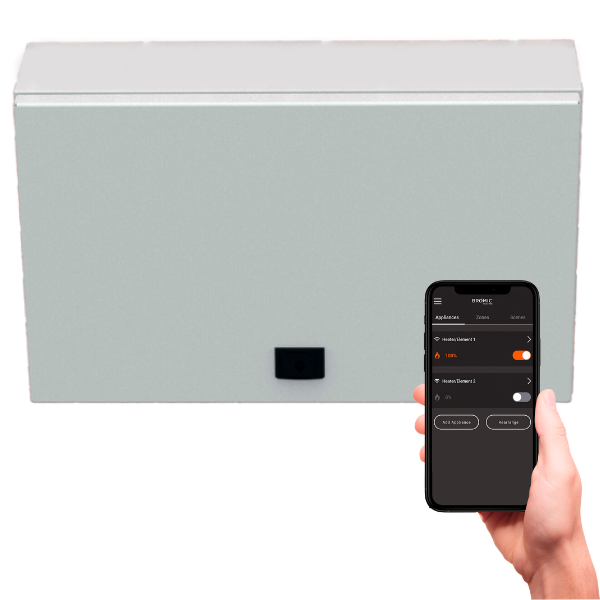

3-Phase 5 Channel model, coming soon, is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.
Get more from your Bromic heaters than ever before. Our Affinity Smart-Heat™ Controls pair seamlessly via Wifi, Bluetooth or optional Ethernet connection to our new Bromic Heating app, where users have complete, customizable control over their comfort in the palm of their hand:
WiFi, Bluetooth or Ethernet connectivity
Complete control of heat output with On/Off and Dimming functionality
Multi-heater management of unlimited connected controllers
Create heater grouping within zones
Timer & schedule settings
Voice control integration with Amazon Alexa & Google Home
Manage multiple sites from one app
Admin control with multi-user management
Connect with home automation or building management systems

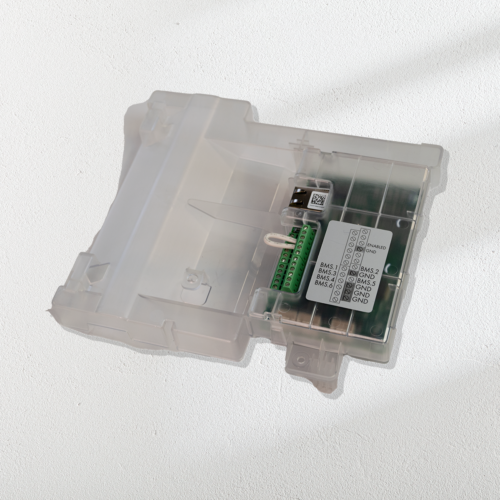

Bromic’s Expansion Board accessory option for the 1 and 2 channel On/Off and Dimmer controls, allows for seamless ethernet integration for a full-proof connection to your outdoor heaters managed via the Bromic Heating app. Additional 0-10V connections allow for seamless plug and play to your Home Automation System or Business Management System.
What products can be used with the Affinity On/Off control series?
The Affinity On/Off Controls can be used with all Bromic Heating Platinum, Tungsten and Cobalt Electric and Gas Heater models.
How many heaters can I control with this controller?
Single Channel Controls are rated for 6kW maximum, Dual Channel controls are rated for 12 kW maximum. Both Single and Dual Channel options can control multiple heaters within their maximum capacity. Each channel can control up to 10 gas heaters.
Examples:
A Single 6 kW On/Off Control is compatible with 2 Platinum 2300W Electric Heaters.
A Dual 12 kW OnOff Control is compatible with 2 Tungsten 6000W Electric Heaters.
A Single 6 kW On/Off Control is compatible with up to 10 Gas Heaters.
Can I control elements individually with the Affinity On/Off control series?
Yes, when using the 12 kW Dual Channel On/Off Control, uses can control the dual elements of these heaters individually:
Platinum 4500W
Tungsten 4000W, 6000W
Do these controllers have a timer function?
The Bromic App includes both timer/scheduling function.
The 5 Channel controllers require a key to open. Where do I buy one?
The key is supplied with the controller, packed inside the enclosure in a plastic bag. The key type is bi-locker and is available from all general electrical supply stores.
I would like to switch heaters off after a time period?
This function is available in different settings. Firstly, when you turn on an appliance, you can also set a timer off interval. You set this each time the heater is turned on and it will then countdown to the interval duration and automatically switch the appliance off. Set this function by clicking the appliance name to go to the detailed screen and setting the timer off internal at the bottom of the screen.
Alternatively, you can set the timer off delay using schedules. This feature is only available to WiFi connected appliances.
Where do I find the serial number of the controller?
The serial number is represented as a 14 digit code (eg CONF2C23080005). The digits will be different for each type of controller. The serial number is printed on the product label attached to the controller. It can also be located via the menu on the Bromic Smat-Heat App, under Site configuration-> Edit Site. All the controllers will be listed and within each controller setting you can identify the connected heaters.
Where do I get additional help?
For additional help with your new Affinity Controls, contact Bromic’s Technical Support team.
