Affinity Smart-Heat™ Eclipse Controllers

Coming Spring 2025

Bromic’s best-in-class controls have arrived with our Affinity Smart-Heat™ Collection. Specifically engineered to manage our ground-breaking combination of radiant heat and LED lighting, the Affinity Eclipse Series is here to curate comfort.

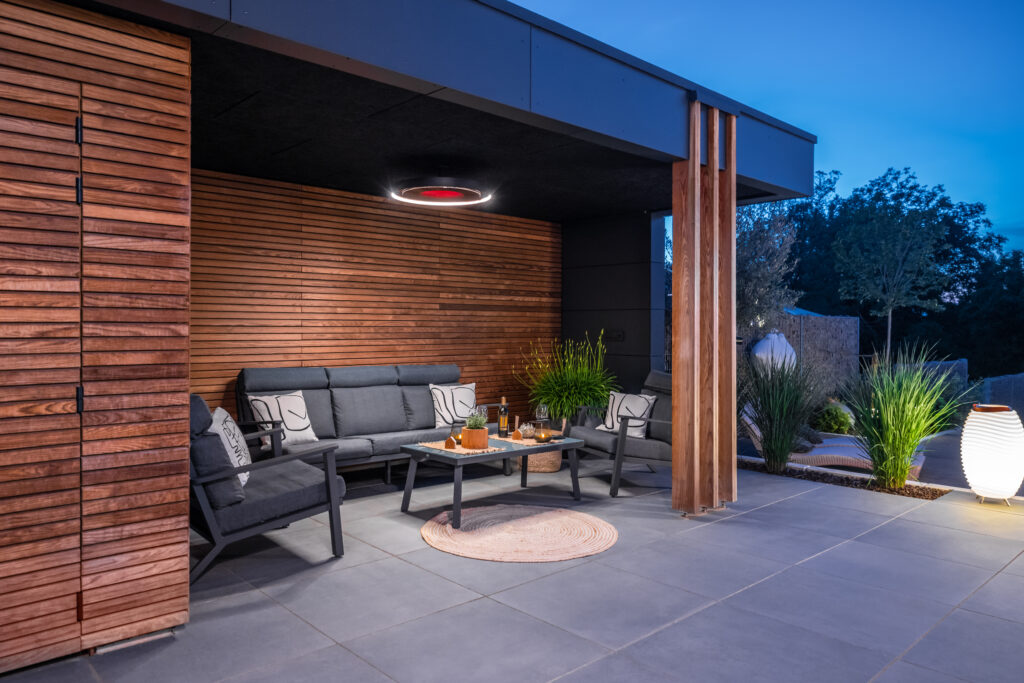

  • The Eclipse Elevated

    Suitable for our Eclipse heaters, the Affinity Eclipse Controllers allow for incremental adjustment of both heat and light output for precise control, and more settings than ever to enjoy the comforts of your Eclipse outdoor heater.

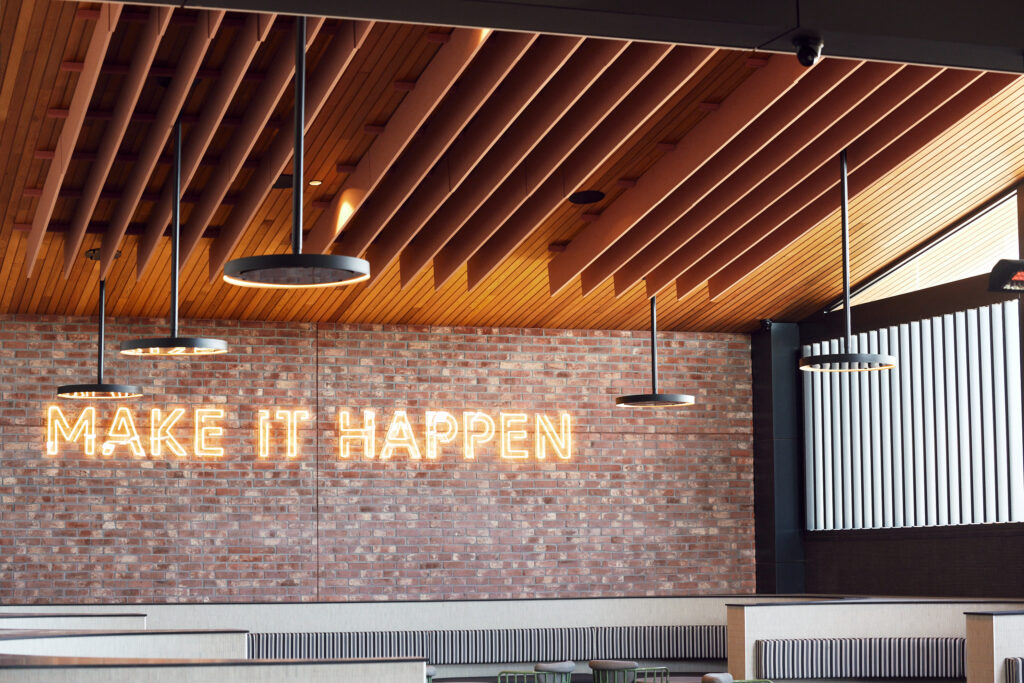

  • More Channels Than Ever

    The new Affinity Eclipse Series comes in available channel options of 1 or 5 – with each channel allowing for one Eclipse electric heater’s heat and light functions, already included in our Eclipse Portable model.

  • Wi-Fi & Bluetooth Enabled

    All controllers within the Affinity Collection are Wi-Fi & Bluetooth enabled to receive commands from our Bromic Heating App from anywhere within your Wi-Fi network or 30ft via Bluetooth.

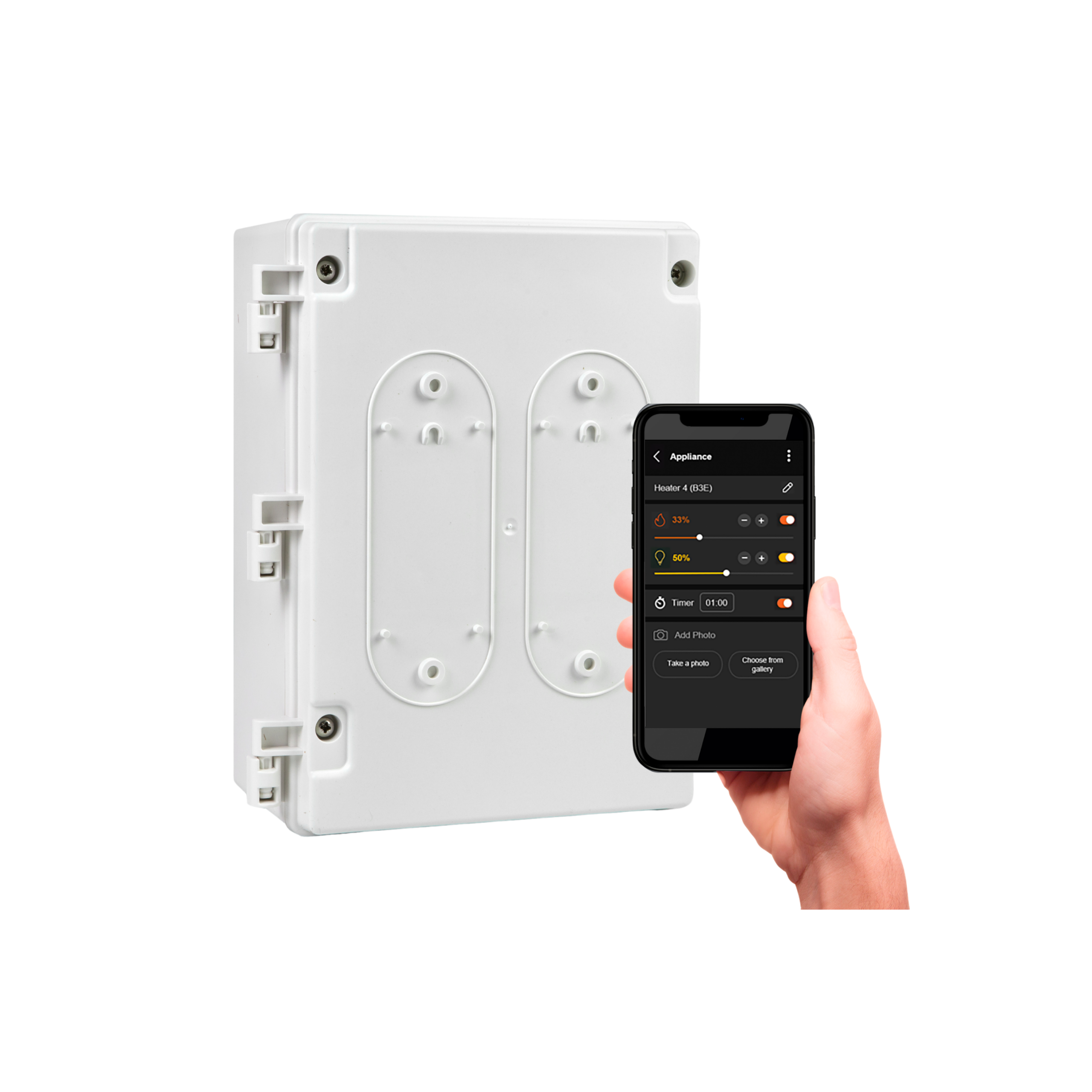

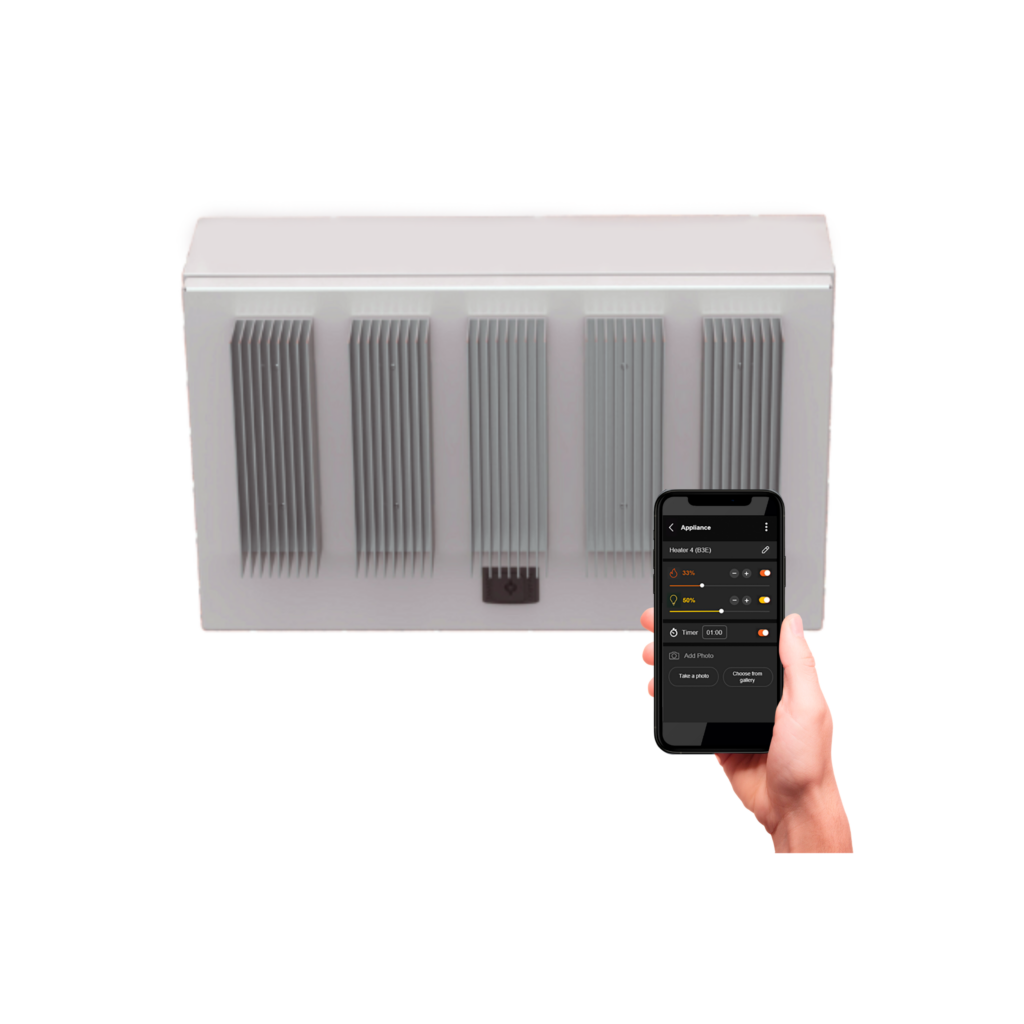

Affinity Smart-Heat™ Eclipse Controllers

£691.00 – £3,955.00 Includes VAT

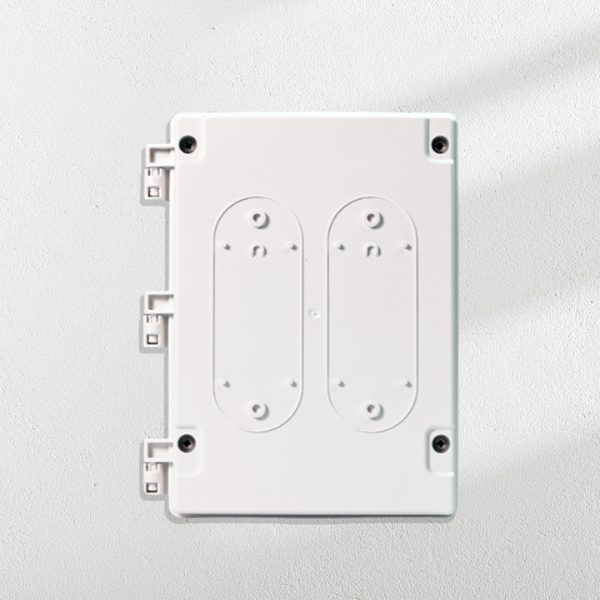

Created for our Eclipse Collection, the Affinity Eclipse Series offers 1 and 5 channel input options (coming Spring 2025) for our fixed Eclipse Pendant, with the 1 channel Eclipse Dimmer Series already included in our Eclipse Portable. Using the Bromic Heating app, have complete incremental control over not just the heat, but the LED light rail output as well, creating the perfect ambience – every time.

Affinity Controls Eclipse Product Brief Download Full Catalog
SKU: N/A Category:
Talk to Sales
THE AFFINITY DIFFERENCE

Tap Into Comfort

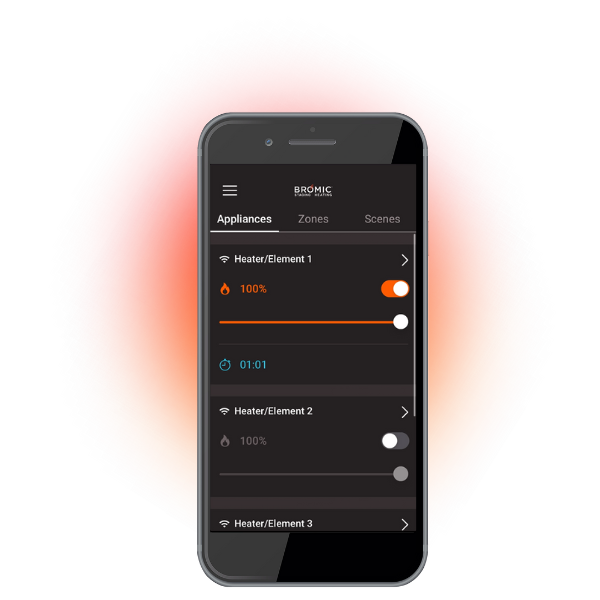

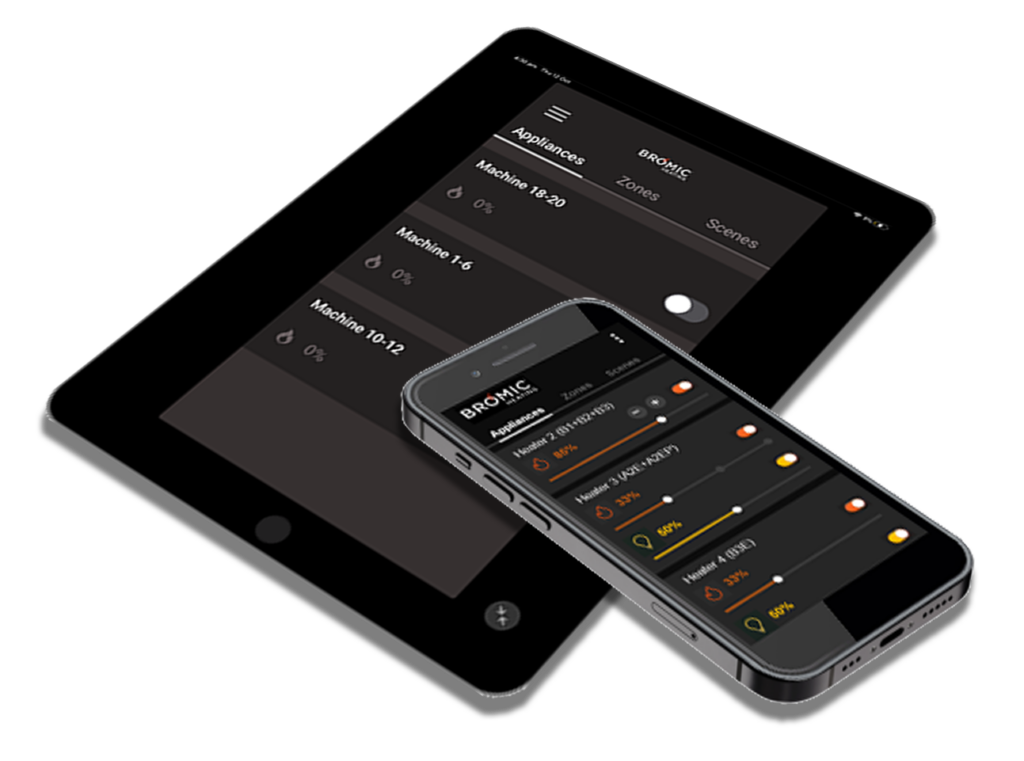

Get more from your Bromic heaters than ever before. Our Affinity Smart-Heat™ Controls pair seamlessly via Wifi, Bluetooth or optional Ethernet connection to our new Bromic Heating app, where users have complete, customizable control over their comfort in the palm of their hand:

  • WiFi, Bluetooth or Ethernet connectivity
  • Complete control of heat output with On/Off and Dimming functionality
  • Multi-heater management of unlimited connected controllers
  • Create heater grouping within zones
  • Timer & schedule settings
  • Voice control integration with Amazon Alexa & Google Home
  • Manage multiple sites from one app
  • Admin control with multi-user management
  • Connect with home automation or building management systems
LEARN MORE

Product Resources

Specifications

MODEL Smart-Heat Control Eclipse Pendant 1 CH Smart-Heat Control Eclipse Pendant 5 CH
PART NUMBER BH8380051 BH8380055
NUMBER OF CHANNELS 1 5
VOLTAGE-MAX CAPACITY PER CHANNEL 220-240V – 4kW 220-240V – 6kW
OPERATING TEMPERATURE RANGE -20°C to +30°C -20°C to +30°C
NON-OPERATING TEMPERATURE RANGE -30°C to +70°C -30°C to +70°C
PROTECTION RATING IP54 IP54
DIMENSIONS 290 x 202 x 112mm 500 x 340 x 252mm
WEIGHT 1.6 kg 15 kg
Downloads

Dimensions

Eclipse 1  Channel Dimensions

Eclipse 5 Channel Dimensions

Mounting Options

Clearances

Installation

Downloads

FAQs

What products can be used with the Affinity Eclipse control series?

The Affinity Eclipse is designed to control both heat and light functions of the Eclipse Pendant Heater.

How can I adjust the lighting of my Eclipse Electric heater?

The Affinity Eclipse is designed to control both heat and light functions of the Eclipse Pendant Heater.

Can I control more than one heater with the Affinity Eclipse control series?

The Affinity Eclipse is designed to control a single Eclipse Pendant Heater.

The 5 Channel controllers require a key to open. Where do I buy one?

The key is supplied with the controller, packed inside the enclosure in a plastic bag. The key type is bi-locker and is available from all general electrical supply stores.

I would like to switch heaters off after a time period?

This function is available in different settings. Firstly, when you turn on an appliance, you can also set a timer off interval. You set this each time the heater is turned on and it will then countdown to the interval duration and automatically switch the appliance off. Set this function by clicking the appliance name to go to the detailed screen and setting the timer off internal at the bottom of the screen.

Alternatively, you can set the timer off delay using schedules. This feature is only available to WiFi connected appliances.

Where do I find the serial number of the controller?

The serial number is represented as a 14 digit code (eg CONF2C23080005). The digits will be different for each type of controller. The serial number is printed on the product label attached to the controller. It can also be located via the menu on the Bromic Smat-Heat App, under Site configuration-> Edit Site. All the controllers will be listed and within each controller setting you can identify the connected heaters.

Where do I get additional help?

For additional help with your new Affinity Controls, contact Bromic’s Technical Support team.
